ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system. ROLLCLIP A may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

Features

• Easier handling:
  - sheave mounted on sealed ball bearings for excellent efficiency

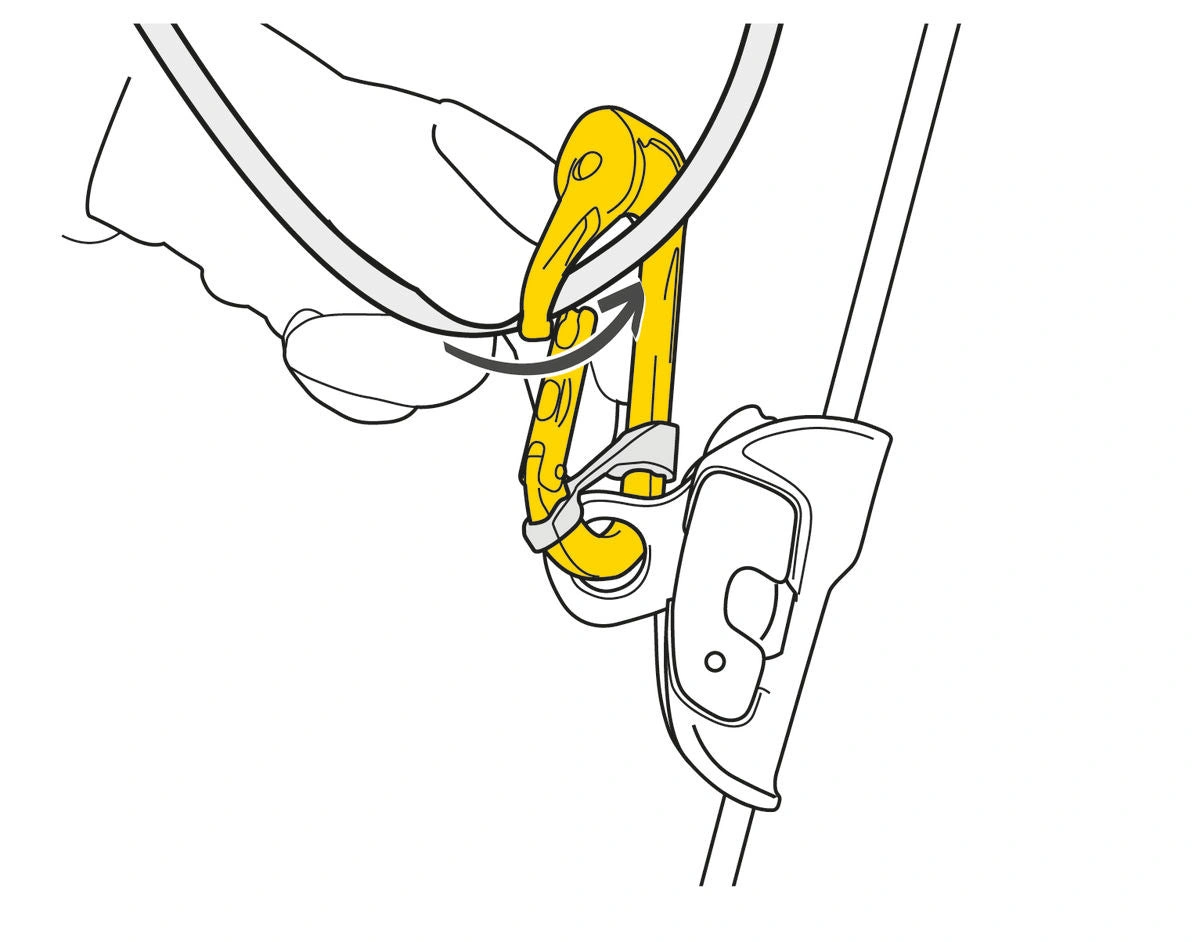

  - gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor

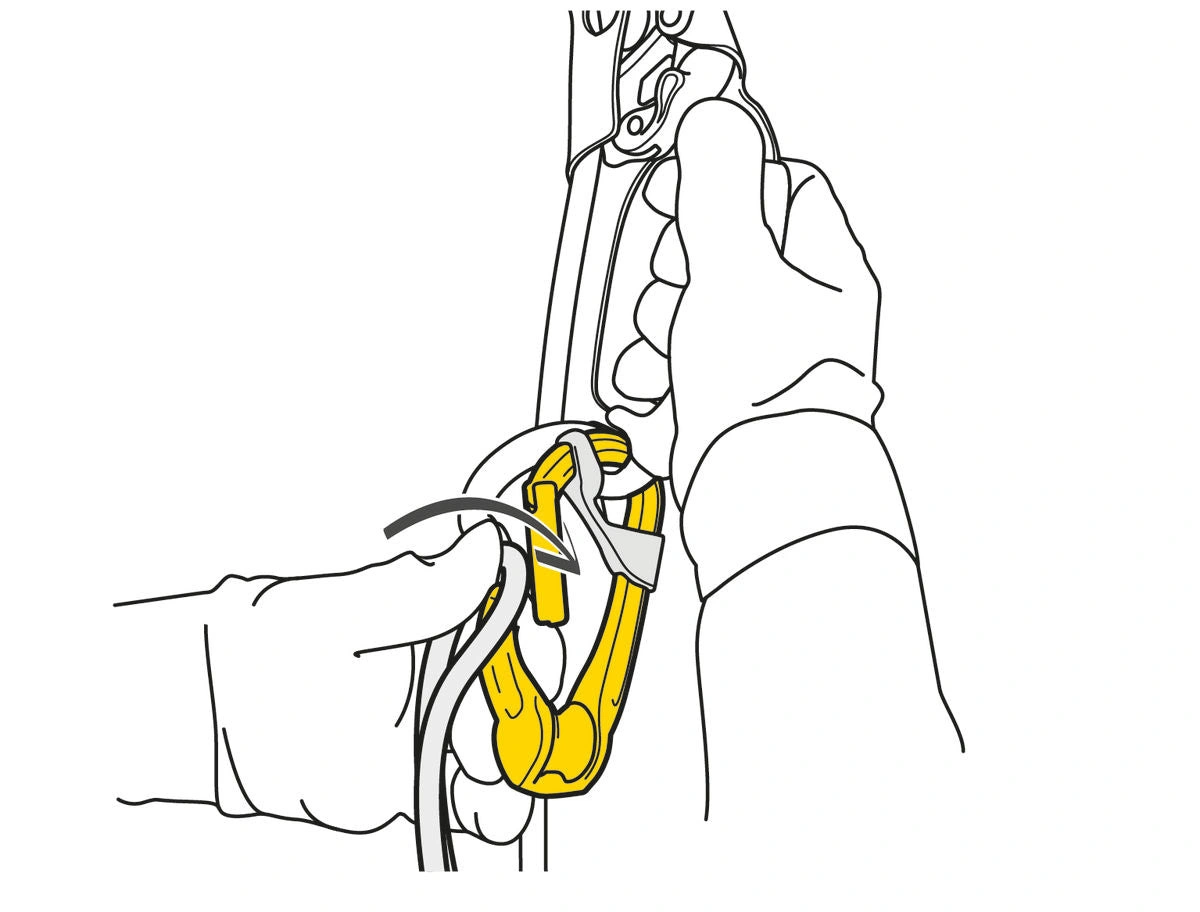

  - may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping
  - Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
• H cross-section of carabiner:
  - ensures an improved strength-to-weight ratio
  - protects markings from abrasion

Specifications

• Weight: 115 g
• Material(s): aluminum

• Min. rope diameter: 7 mm

• Max. rope diameter: 13 mm

• Sheave diameter: 18 mm

• Maximum working load: 2 x 2 = 4 kN

• Efficiency: 85 %
• Major axis strength: 20 kN

• Minor axis strength: 8 kN

• Open gate strength: 7 kN
• Gate opening: 22 mm
• Certifications: CE EN 362, EN 12275, EN 12278, UKCA, EAC
